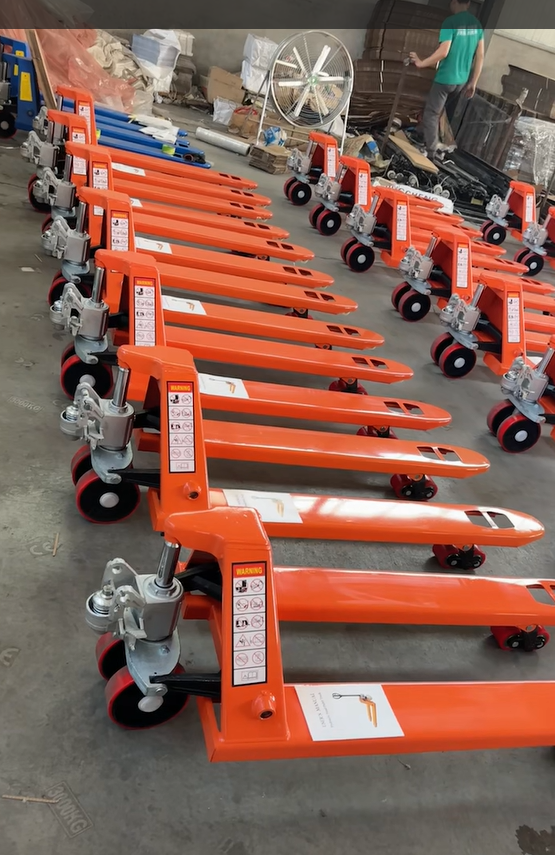

How Does a Hand Pallet Truck Work?

A Practical Guide by mkbkhoist

Walk into any warehouse early in the morning, and you’ll likely hear the quiet rhythm of steel wheels rolling across the floor. That sound? It’s the hand pallet truck—arguably the most reliable “silent worker” in material handling.

At mkbkhoist, we often say: if forklifts are the muscle, pallet trucks are the backbone.

But have you ever wondered what actually happens when you pump that handle?

1. The Simple Idea Behind a Powerful Tool

A hand pallet truck doesn’t rely on electricity or complex systems. Its strength comes from a surprisingly elegant principle: hydraulics.

At its core, it uses fluid pressure to multiply force. In simple terms, a small push from your hand becomes a powerful lift under heavy loads. This is based on Pascal’s Law—pressure applied to a confined fluid is transmitted equally in all directions.

That’s why a 2.5-ton pallet can rise with just a few pumps.

2. Main Components of a Hand Pallet Truck

Think of a pallet truck as a team—each part has a clear role to play.

Key Parts Overview

These elements mirror the structure of a hydraulic jack system, where fluid, pistons, and valves work together to transfer force efficiently.

3. How the Lifting Process Works (Step-by-Step)

Let’s break it down into something you can visualize:

Step 1: Pumping the Handle

When you pull the handle, a small internal piston starts moving. This action pushes hydraulic oil forward.

Step 2: Pressure Builds Up

The oil flows through a one-way valve into a larger cylinder. Because the fluid is nearly incompressible, pressure builds quickly.

Step 3: The Forks Rise

That pressure pushes a larger piston upward, lifting the forks—and the load with them.

Step 4: Hold Position

Thanks to check valves, the oil stays locked in place. The load doesn’t drop, even if you stop pumping.

Step 5: Controlled Lowering

Squeeze the release lever, and the valve opens. Oil flows back into the reservoir, and the forks descend smoothly.

4. Why It Feels So Easy to Lift Heavy Loads

Here’s the interesting part.

You’re not actually “lifting” the load directly. You’re trading distance for force.

• You move the handle many times

• The forks move only a little

• But the force is multiplied significantly

This mechanical advantage is what makes manual pallet trucks so efficient in daily operations.

5. Real-World Advantages in Warehousing

From a practical standpoint, hand pallet trucks remain essential because they are:

• Reliable – no electronics, fewer failures

• Cost-effective – low purchase and maintenance cost

• Compact – ideal for tight warehouse spaces

• Easy to use – minimal training required

At mkbkhoist, we’ve seen customers rely on the same unit for years with minimal servicing—proof that simplicity often wins.

6. Common Applications

Hand pallet trucks are widely used in:

• Warehouses and logistics centers

• Supermarkets and retail stockrooms

• Manufacturing plants

• Container loading/unloading

Anywhere pallets exist, these trucks follow.

7. A Small Tool with a Big Role

It’s easy to overlook a hand pallet truck. It doesn’t make noise. It doesn’t look complex.

But behind every smooth lift is a smart hydraulic system quietly doing its job—turning a human push into industrial power.

At mkbkhoist, we believe understanding your tools helps you use them better—and choose them smarter.

8. Final Thoughts

The next time you pump a pallet truck, remember:
you’re not just moving goods—you’re activating a precise hydraulic system designed to make heavy work feel light.
