product details

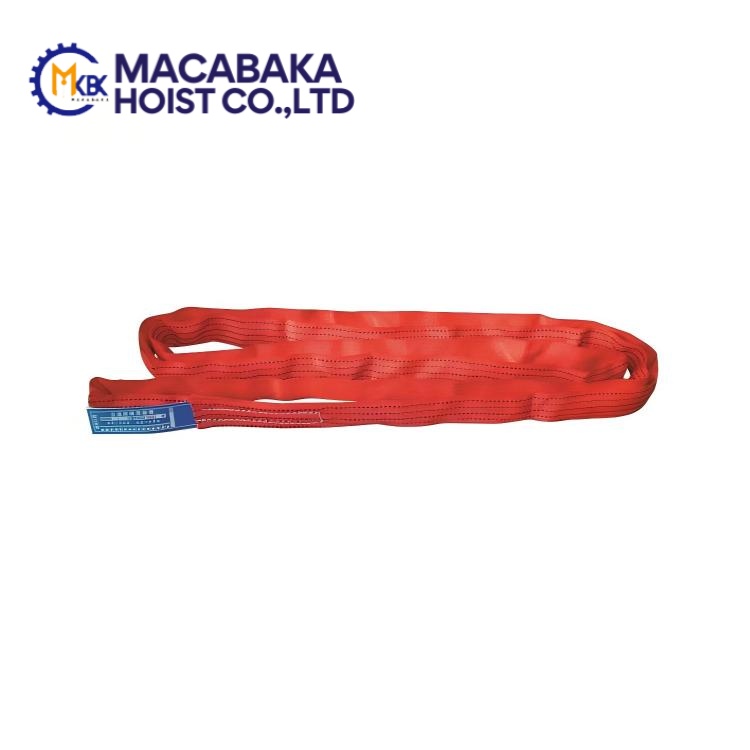

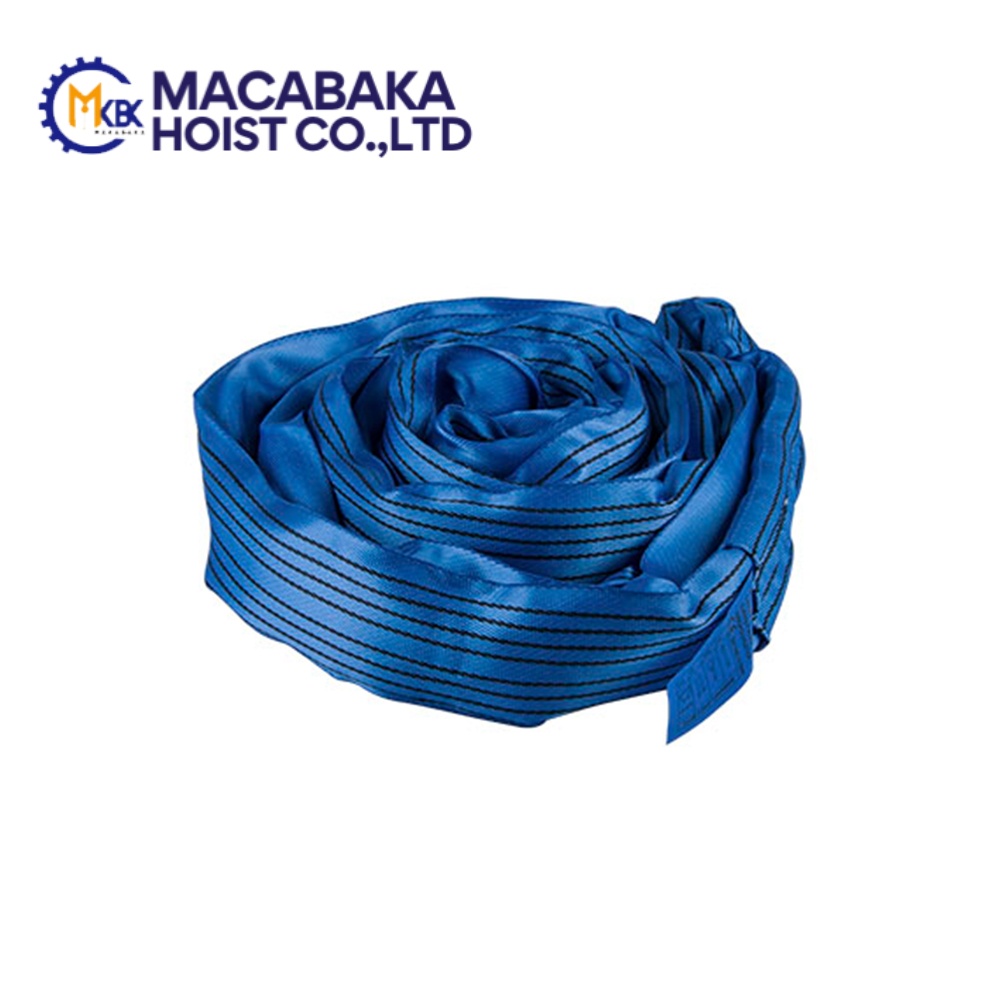

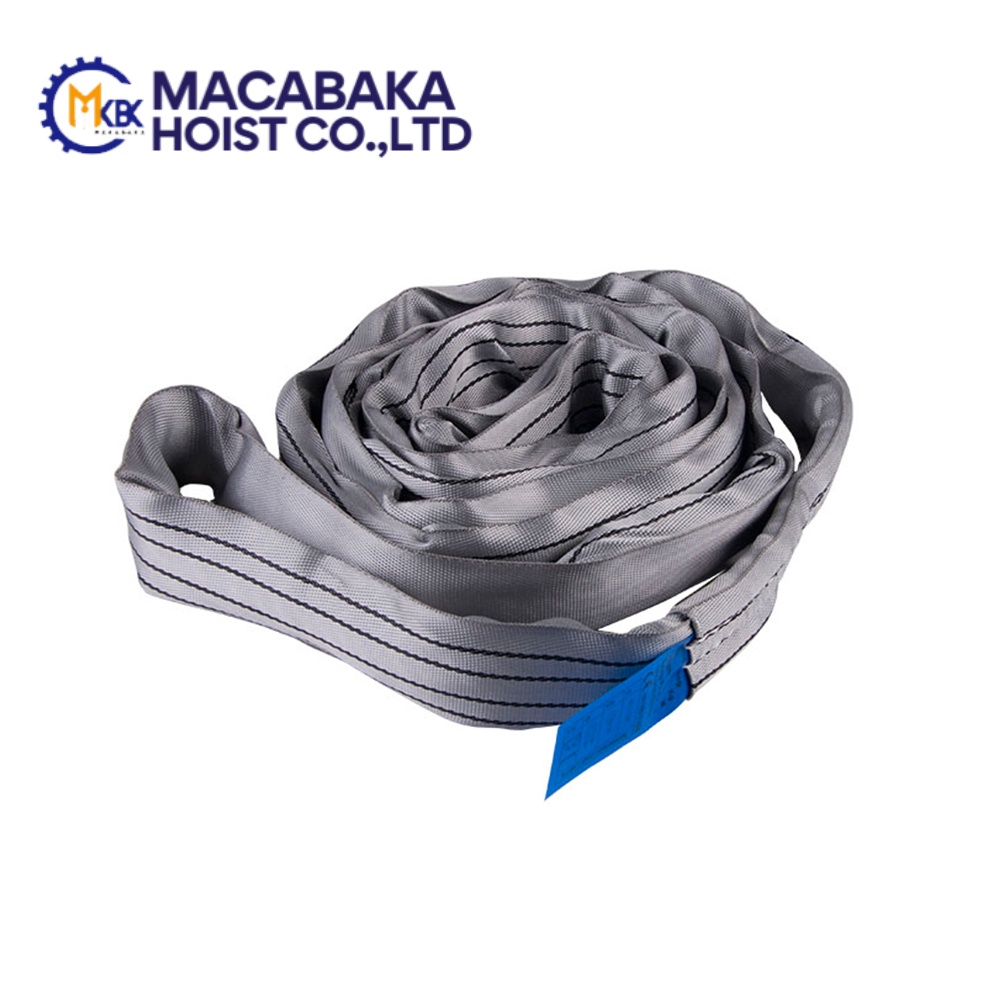

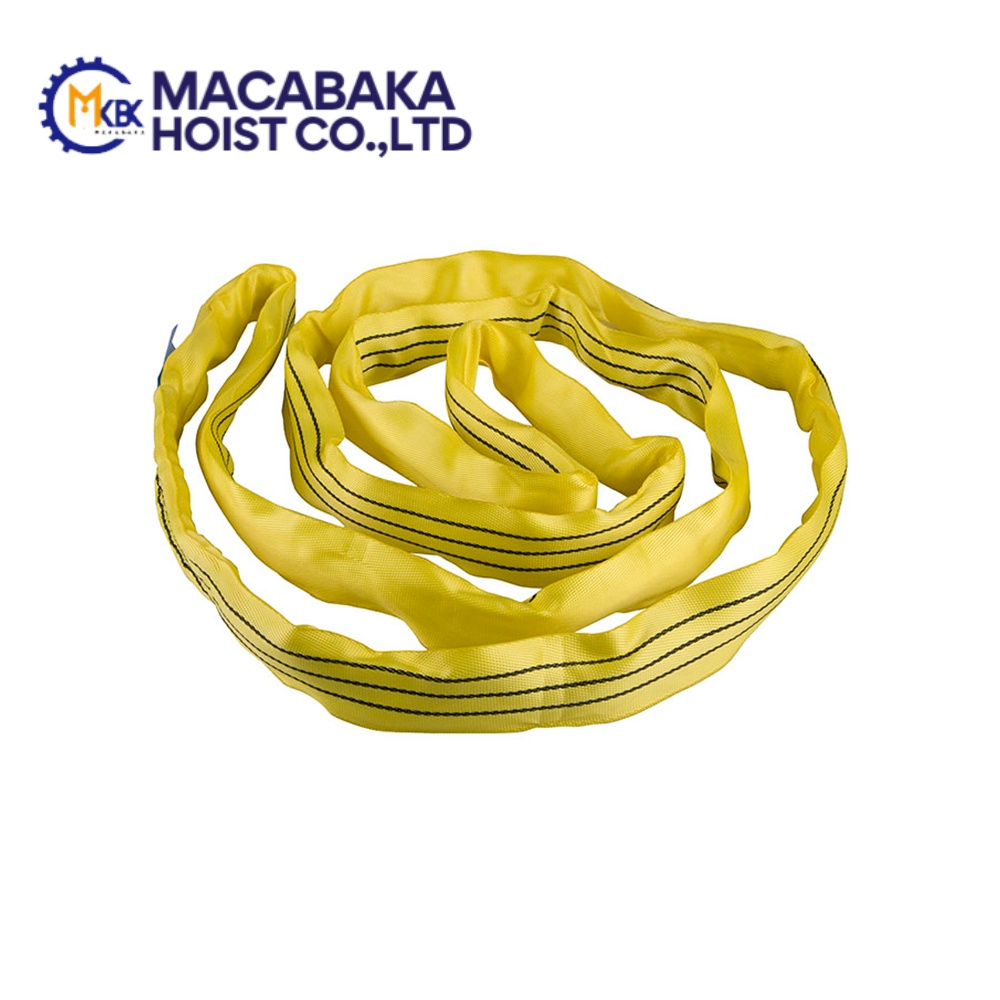

Round sling has the maximum load up to 3000T, effective length up to 10om safety Factor adopted is normally 7:1, 6:1
Round sling is made of high tension Polyester yarn(100%PES), the strands inside are as a form of endless cycle. The outsidesleeve is also made of 100%PES, not for the loading, but to protect the strands inside.
Round slings are the ideal solution for the safe lifting of loads, whether this is to be at your works, for loading and unloadingor for using at a building site . The round slings willprotect items being lifted .If the sling is damaged badly, the outside sleeveis breakage, and the inside strands will go ou, so the sling can not be used any more. Their sturdy core and a covering layerwill guarantee a long serviceable life, even when in continuous use.round slings are also repairable.

Max.SWL=Mode Coefficient P×Working Load Limit Max.SWL of lifting method
Code	Color	Single Max,Working Load Limit						2-Legs Max,Working Load Limit				Approx Width (mm)	Min Length (m)	Max Length (m)
		Upright	Choked	β				Upright 45°	Choked 45°	Upright 45°—60°	Choked 45°—60°
		Upright	Choked	0°—7°	7°—45°	45°—60°	45°	Upright 45°	Choked 45°	Upright 45°—60°	Choked 45°—60°

		1.0	0.8	2.0	1.4	1.0	0.7	1.4	1.12	1.0	0.8
EA-01	Purple	1000	800	2000	1400	1000	700	1400	1120	1000	800	40	1	100
EA-02	Green	2000	1600	4000	2800	2000	1400	2800	2240	2000	1600	50	1	100
EA-03	Yellow	3000	2400	6000	4200	3000	2100	4200	3360	3000	2400	60	1	100
EA-04	Gray	4000	3200	8000	5600	4000	2800	5600	4480	4000	3200	70	1	100
EA-05	Red	5000	4000	10000	7000	5000	3500	7000	5600	5000	4000	75	1	100
EA-06	Brown	6000	4800	12000	8400	6000	4200	8400	6720	6000	4800	80	1	100
EA-08	Orange-red	8000	6400	16000	11200	8000	5600	11200	8960	8000	6400	90	1	100
EA-10	Orange-red	10000	8000	20000	14000	10000	7000	14000	11200	10000	8000	100	1	100
EA-12	Orange-red	12000	9600	24000	16800	12000	8400	16800	13440	12000	9600	110	1	100
EA-15	Orange-red	15000	12000	40000	28000	15000	14000	28000	22400	15000	12000	150	1	100
EA-20	Orange-red	20000	16000	60000	42000	20000	21000	42000	33600	20000	16000	180	1	100
EA-25	Orange-red	25000	20000	50000	35000	25000	17500	35000	28000	25000	20000	200	1	100
EA-30	Orange-red	30000	24000	60000	42000	30000	21000	42000	33600	30000	24000	200	1	100
EA-40	Orange-red	40000	32000	80000	56000	40000	28000	56000	44800	40000	32000	200	1	100
EA-50	Orange-red	50000	40000	100000	70000	50000	35000	70000	56000	50000	40000	220	1	100
EA-60	Orange-red	60000	48000	120000	84000	60000	42000	84000	67200	60000	48000	220	1	100
EA-80	Orange-red	80000	64000	160000	112000	80000	56000	112000	89600	80000	64000	260	1	100
EA-100	Orange-red	100000	80000	200000	140000	100000	70000	140000	112000	100000	80000	290	1	100

Q1: What material are webbing slings made of?

A: They are made from 100% high-strength polyester, providing flexibility and durability.

Q2: What safety factors are available?

A: Common safety factors are 5:1, 6:1, and 7:1, depending on your application and market requirements.

Q3: How do I choose the correct sling capacity?

A: You should select the capacity based on the weight of the load and lifting method (straight, choke, basket).

Q4: Can you customize the length and color?

A: Yes, we provide customized length, color, and labeling services.

Q5: What standards do your slings meet?

A: Our webbing slings comply with EN1492-1 standard and can provide CE/GS certification.

Q6: What are the main applications of webbing slings?

A: They are widely used in construction, logistics, ports, warehouses, and industrial lifting operations.
