product details

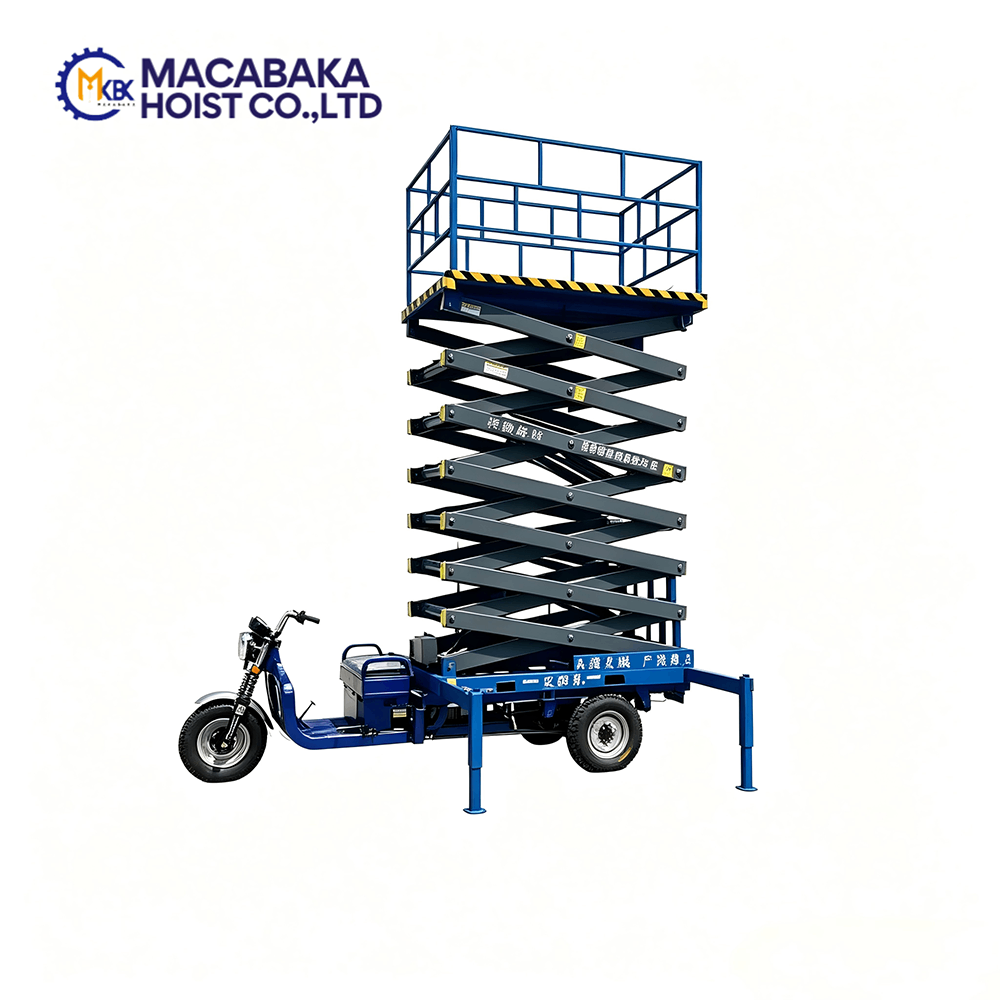

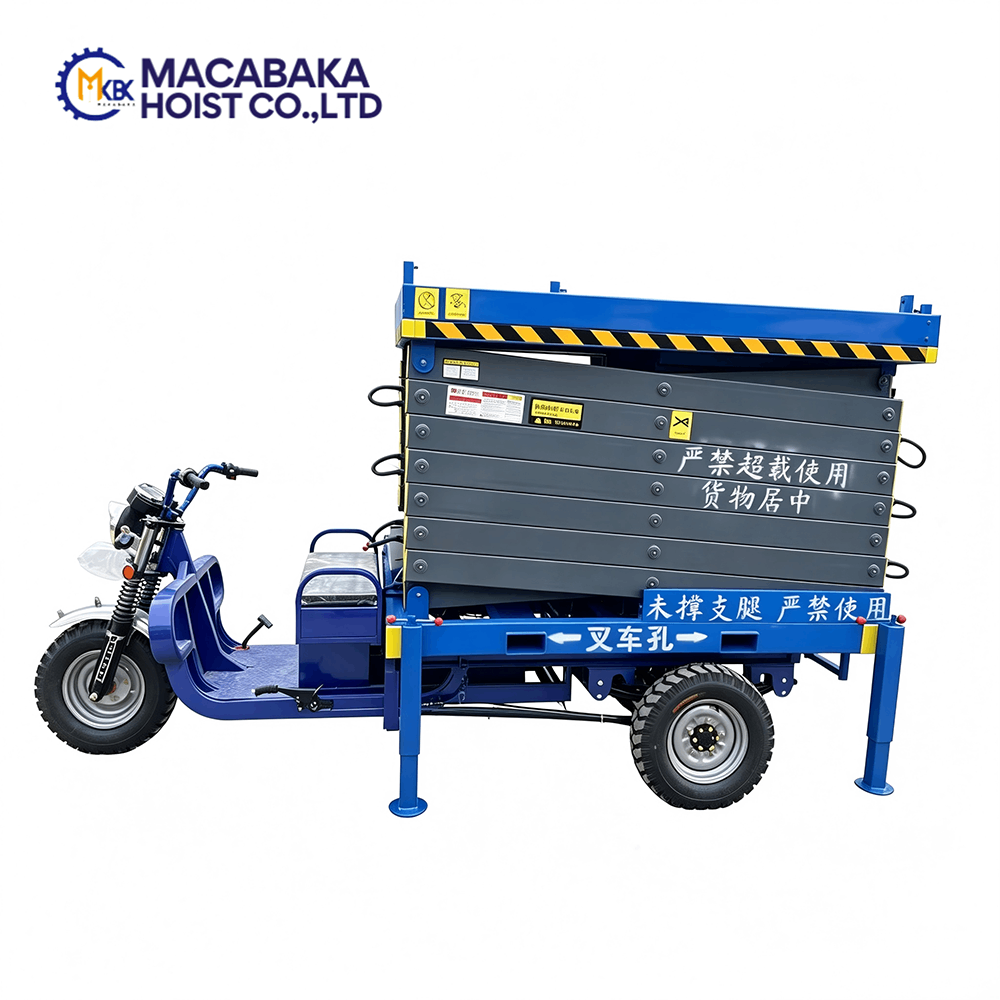

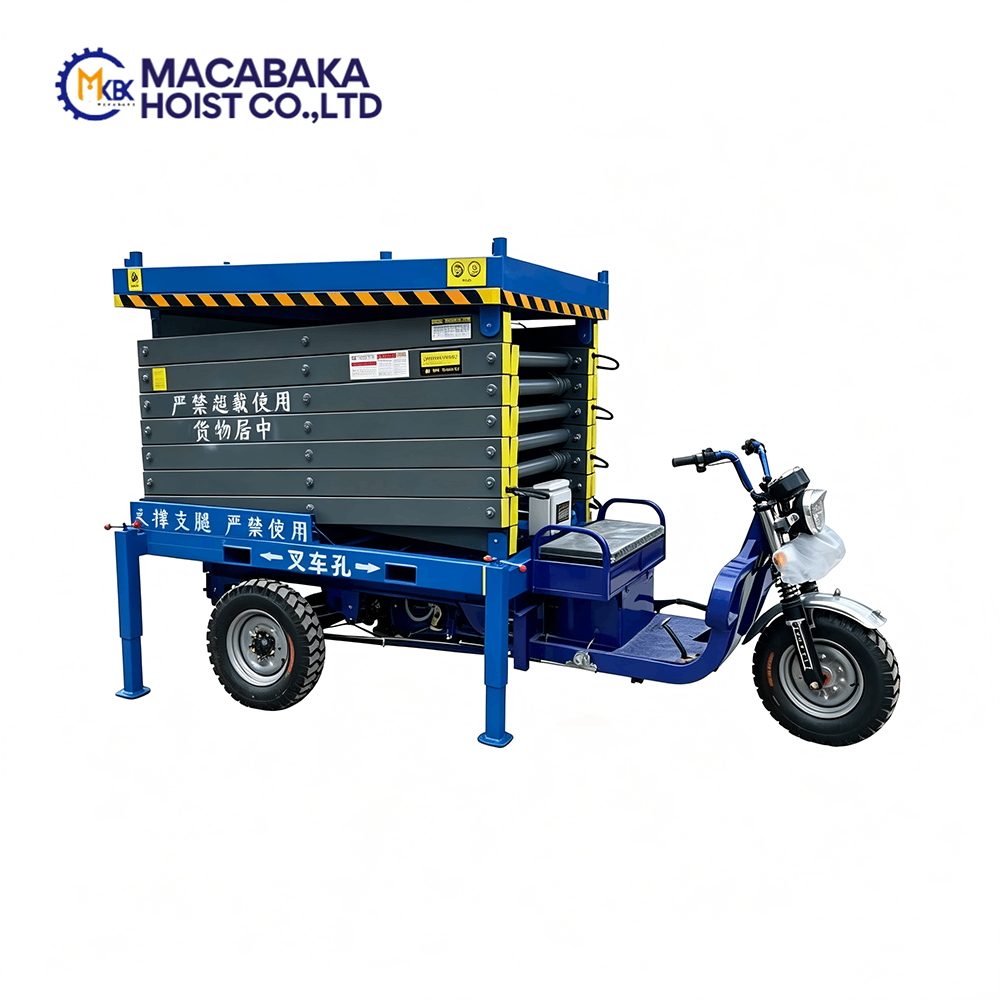

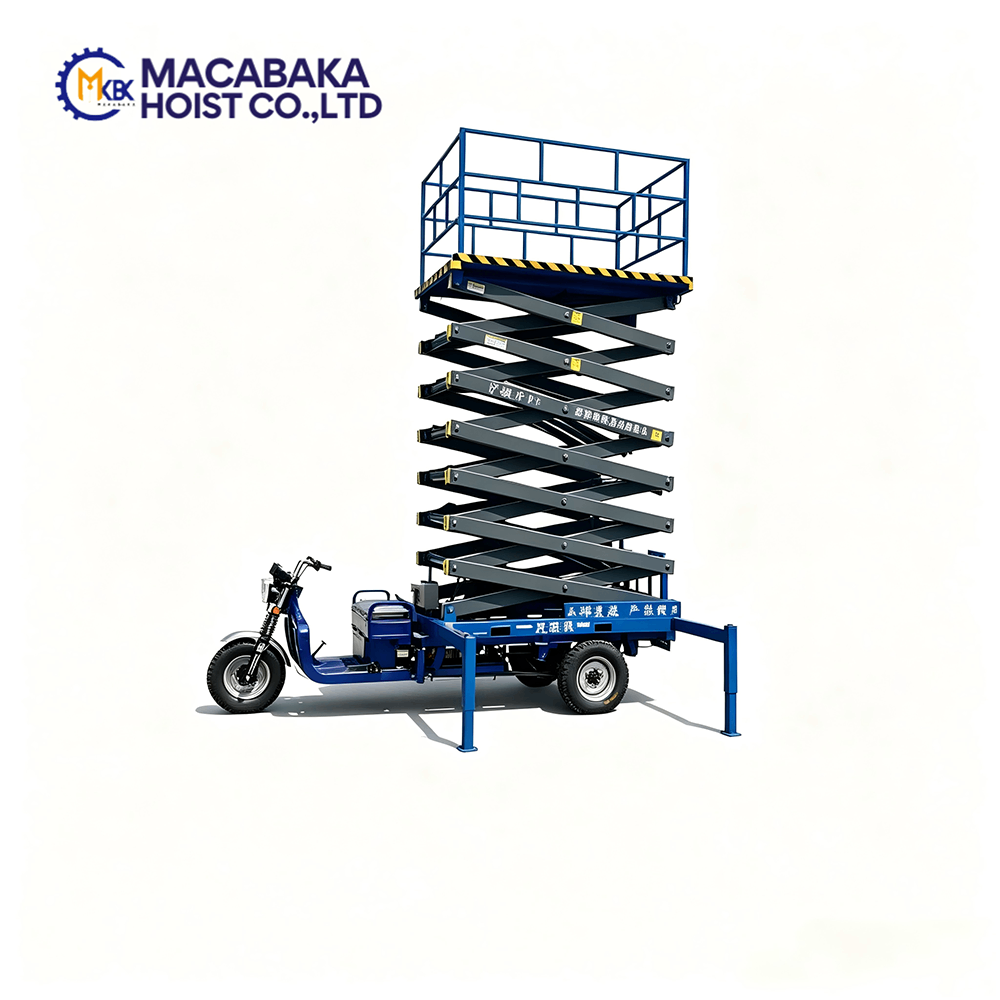

The Electric Three-Wheeled Scissor-Type Aerial Work Platform is an innovative mobile lifting solution that combines transportation and aerial working functions in one machine. Designed with a three-wheel electric chassis, it offers excellent mobility, making it ideal for maintenance, installation, warehouse operations, municipal engineering, advertising, landscaping, and factory applications.
Powered by a rechargeable battery system, this platform delivers quiet, emission-free operation while reducing operating costs. Its compact design allows easy movement through narrow spaces, and the stable scissor lifting mechanism ensures safe and efficient work at height.
Available in working heights from 6m to 12m with load capacities of 300kg to 500kg, this aerial work platform provides a practical and economical solution for various indoor and outdoor lifting tasks.

Product Features

Dual Function Design

Combines electric transportation and aerial working functions, reducing labor and improving efficiency.

Stable Hydraulic Scissor Lift

Heavy-duty scissor structure provides smooth lifting and excellent platform stability.

Eco-Friendly Electric Drive

Battery-powered operation produces low noise and zero emissions, making it ideal for indoor environments.

Compact Three-Wheel Design

Excellent maneuverability allows easy operation in narrow aisles and confined working areas.

High Load Capacity

Supports loads from 300 kg to 500 kg, allowing multiple workers and tools on the platform.

Comprehensive Safety Protection

Equipped with emergency stop, emergency lowering system, overload protection, safety guardrails, and hydraulic safety valves.

Basic Technical Parameters of the Product
Platform height	6000 mm	8000 mm	9500 mm	11500 mm
Working height	8000 mm	10000 mm	11500 mm	13500 mm
Rated load	300-500 kg	300-500 kg	500 kg	500 kg
Power supply voltage	48 v		60 v
Operating voltage	60v/48v/220v/380v
Motor power of the lifting platform	2200 W
Motor power	1200 W		2200 W
Platform dimensions (L x W)	1800*1000 mm	2020*1000 mm	2020*1300 mm	2020*1300 mm
Guardrail height	1100 mm	1100 mm	1100 mm	1100 mm
Overall dimensions (L x W x H)	330010001500 mm	350010001600 mm	350013001600 mm	350013001800 mm
Machine weight	1t	1.2t	1.5t	1.8t
Product Configuration
Main Profiles	High-strength manganese steel
Chassis Material	Custom fabrication of 3.5mm rectangular tubing
Platform Material	Custom fabrication using 3mm patterned plate and 40x60x3.0mm rectangular tubing.
Scissor Mechanism	100x50mm rectangular tube, 3.75mm thick		120x60mm rectangular tube, 3.75mm thick
Guardrail Specifications	Constructed by welding 25x25mm square tubing; height: 1100mm.
Hydraulic Cylinder	Medium 80/45 * 1 unit/machine	Medium 80/45 * 2 spindles/unit	Medium 80/45 * 4 units/machine	Medium 80/45 * 4 units/machine
Seals	Uses imported NOK seals from Japan.
Pins	Custom-fabricated 35# round steel, subjected to high-temperature quenching and tempering.
Hydraulic Oil	ISO VG 46 Anti-wear Hydraulic Oil
Lifting Speed	Ascent speed: 4–6 m/min (descent speed is adjustable; equipped with an emergency descent device)
Surface Paint	Spray-painted finish; offers a smooth surface and excellent sealing, and is resistant to rust (standard color: blue).
Hydraulic Hoses	Uses 48 MPa double-layer wire-reinforced high-temperature oil hose (Northwest Rubber).
Electrical Components	Chint Electric utilizes a dual-control electrical system design—featuring controls at both upper and lower levels—to facilitate easy operation and enhanced convenience for personnel working at the workstation.
Tires	Equipped with 450-12 pneumatic tires.	Equipped with 500-12 pneumatic tires.	Equipped with 500-12 pneumatic tires.	Equipped with 500-12 pneumatic tires.
Frame	Specially designed, extra-thick, and oversized frame
Battery	Chaowei lead-acid batteries (45Ah × 4 per unit) and one smart charger.		New energy battery (53Ah × 5 per unit), one smart charger.
Lifting Mechanism	Wired handle for lifting control

Q1: What working height do you need?

A: We offer different working heights including 6m, 8m, 10m, and 12m. Please choose the model according to your required working height.

Q2: What load capacity do you require?

A: Our electric three-wheeled scissor platforms are available with 300kg, 500kg load capacity options. Please select based on the number of workers and tools required.

Q3: Will the platform be used indoors, outdoors, or both?

A: The platform can be used for indoor and outdoor applications. Please inform us of your working environment so we can recommend the suitable configuration.

Q4: Which battery type do you prefer?

A: Standard models use 48V lead-acid batteries. Lithium battery options are also available for longer working time and faster charging.

Q5: Do you need OEM branding or customization?

A: Yes, we support OEM logo, customized color, platform size, battery type, and other special requirements.

Q6: What is your order quantity and delivery destination?

A: Please provide your required quantity and destination port/country, and we will offer the most suitable quotation including shipping options.
