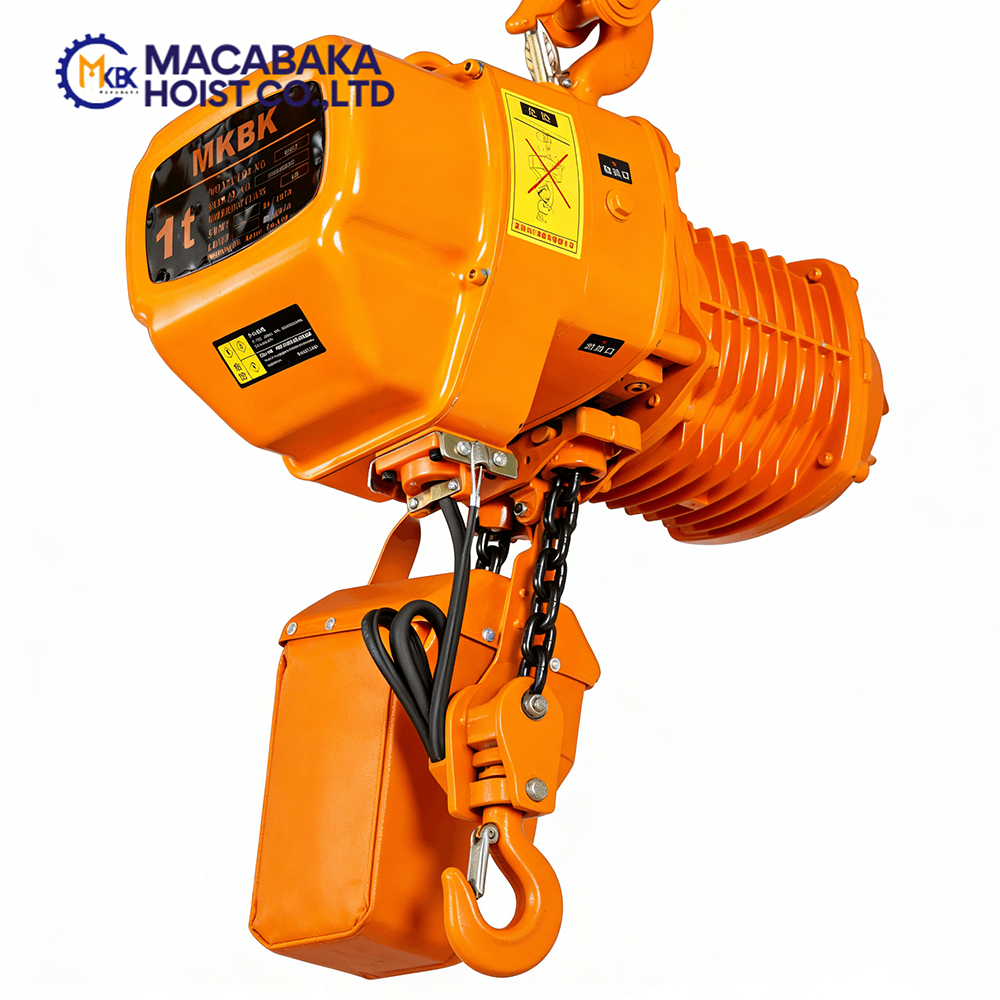

The HHBB Electric Chain Hoist With Hook is a compact and efficient lifting device designed for vertical lifting applications. It is widely used in factories, warehouses, workshops, construction sites, and maintenance operations where safe and reliable lifting is required.
Equipped with a high-performance motor and durable alloy steel load chain, the HHBB electric chain hoist provides stable lifting performance and long service life. The hook suspension design allows easy installation and flexible operation without the need for complex rail systems.
With its strong lifting capacity, compact structure, and reliable braking system, the HHBB electric chain hoist ensures safe and efficient material handling for a wide range of industrial applications.

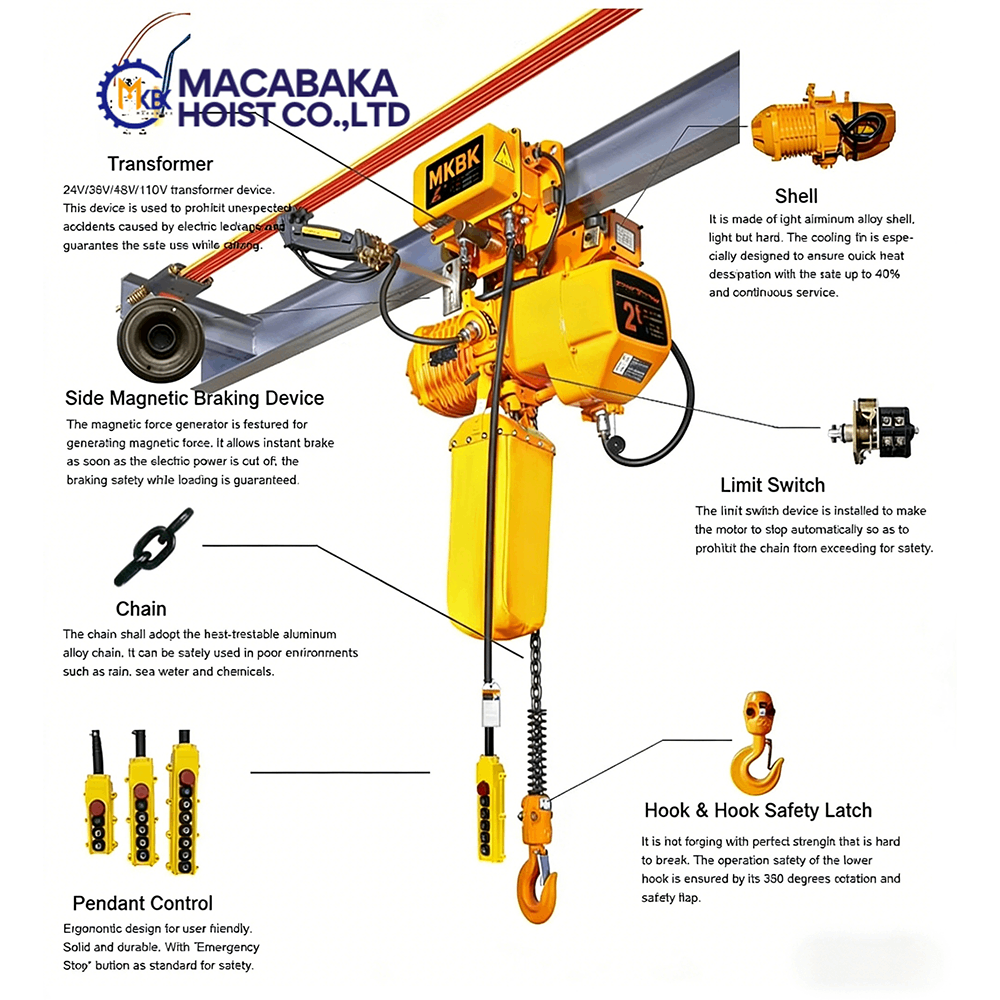

Product Features

1,Compact and Lightweight Structure

The compact design makes the hoist easy to install and suitable for various lifting environments.

2, High Efficiency Motor

Equipped with a powerful motor that ensures stable and efficient lifting performance.

3, Durable Alloy Steel Chain

High-strength G80 load chain provides excellent wear resistance and long service life.

4, Reliable permanent magnet Brake

Ensures safe stopping and prevents load slipping during operation.

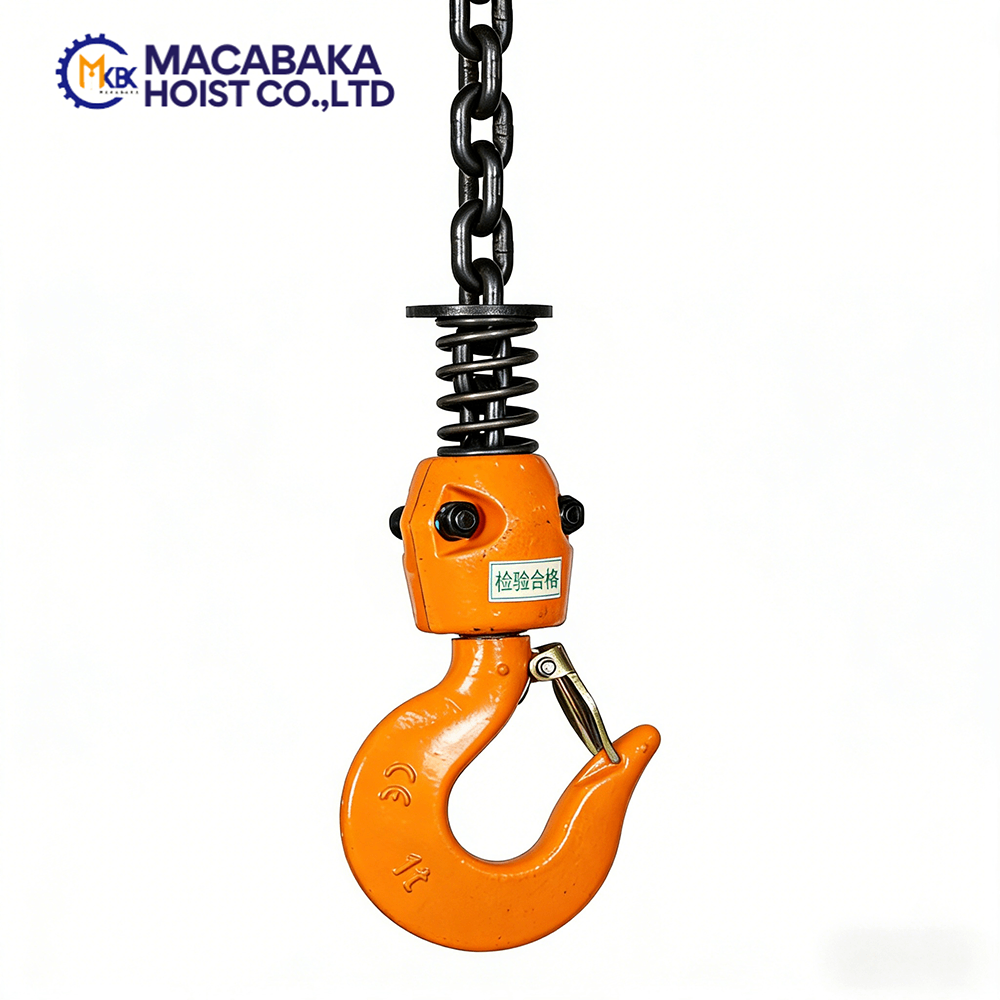

5,Hook Suspension Design

The hook suspension allows easy installation and flexible use without the need for a trolley or rail system.

6, Durable Construction

The strong steel housing protects internal components and ensures stable performance in demanding working environments.

Technical Parameters
Type	Capacity (T)	Lifting Height	Lifting Speed	Lifting motor
				Power (kw)	Potation Speed (r/min)	Phases	Voltage (V)	Frequency (HZ/S)
MK-HBT1	0.5	3/9	6.8	0.75	1140	3	380	50
MK-HBT2	1	3/9	3.4	0.75	1140	3	380	50
MK-HBT3	1	3/9	6.6	1.5	1140	3	380	50
MK-HBT4	1.5	3/9	8.8	3	1140	3	380	50
MK-HBT5	2	3/9	6.6	3	1140	3	380	50
MK-HBT6	2	3/9	3.3	1.5	1140	3	380	50
MK-HBT7	2.5	3/9	5.4	3	1140	3	380	50
MK-HBT8	3	3/9	5.4	3	1140	3	380	50
MK-HBT9	3	3/9	4.4	3	1140	3	380	50
MK-HBT10	3	3/9	2.2	1.5	1140	3	380	50
MK-HBT11	5	3/9	2.7	3	1140	3	380	50

1. What is the lifting capacity of the HHBB electric chain hoist?

The HHBB electric chain hoist is available in multiple capacities ranging from 0.5 ton to 10 ton.

2. What is the standard lifting height?

The stndard lifting height is usually 3 meters or 6 meters, but other heights can be customized according to customer requirements.

3. What material is used for the load chain?

The load chain is made from High-strength G80, providing excellent durability and safety during lifting operations.

4. What voltage options are available?

The hoist can be produced with different voltage options such as 220V, 380V, or 415V depending on the customer's location.

5. Is the hoist easy to install?

Yes, the hook suspension design allows quick installation and easy operation without complicated mounting structures.

6. Do you provide OEM services?

Yes, OEM services are available, including customized logo, color, packaging, and branding according to customer requirements.
