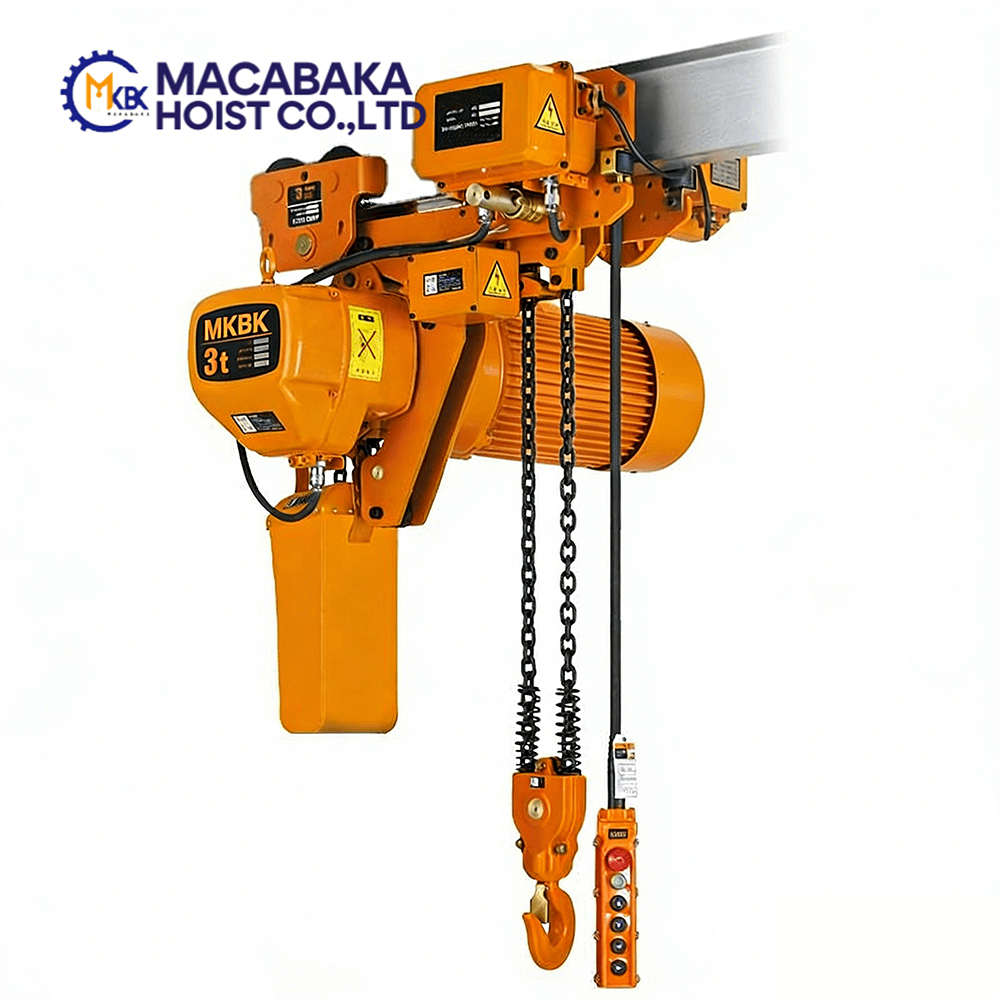

Low Headroom Electric Chain Hoist

The MKhoist low headroom electric chain hoist is the premier solution for facilities where ceiling height is a critical constraint. By integrating a unique short-distance hook-to-trolley design, this low-profile hoist provides significantly more lifting height compared to standard models, allowing for efficient operation in restricted spaces.

Stable Quality
Reasonable Price
Quick Delivery

Online Consultation

PDF Download

product details

Technical Parameters
Type	Capacity (T)	Lifting Height	Lifting Speed	Lifting motor		Operaing motor		I Beam (mm)
Type	Capacity (T)	Lifting Height	Lifting Speed	Power (kw)	Rotation speed 1440r/min,Phases 3,Voltage 380V,Frequency 50HZ/S	Power (kw)	Rotation speed 1440r/min,Phases 3,Voltage 380V,Frequency 50HZ/S,Operating speed 11/2m/min	I Beam (mm)
MK-HBL1	0.5	3/9	6.8	0.75		0.4		58-153
MK-HBL2	1	3/9	6.6	1.5		0.4		58-153
MK-HBL3	1.5	3/9	8.8	3.3		0.4		82-178
MK-HBL4	2	3/9	6.6	3		0.4		82-178
MK-HBL5	2	3/9	3.3	1.5		0.4		82-178
MK-HBL6	2.5	3/9	5.4	3		0.75		100-178
MK-HBL7	3	3/9	5.4	3		0.75		100-178
MK-HBL8	3	3/9	4.4	3		0.75		100-178
MK-HBL9	5	3/9	2.7	3		0.75		100-178
MK-HBL10	7.5	3/9	1.8	3		0.75		100-178

Why Choose Our Low Headroom Hoist?

Optimized Clearance: Specialized design minimizes the distance between the beam and the hook, reclaiming valuable vertical workspace.
Industrial Durability: Equipped with high-strength G80 alloy steel chains and a robust aluminum alloy body for heat dissipation.
Advanced Safety: Features upper and lower limit switches, an electromagnetic brake system, and reverse phase protection.
Versatile Capacity: Available in various load ratings from 0.5 Ton to 7.5 Tons with optional motorized trolleys.

Perfect for low-ceiling workshops, basement warehouses, and any facility where every inch of lifting height counts.
