Characteristics  of  pressed  wire  rope  slings:
High working load limit
Perfect pressed shape
Excellent cauterization resistance
Saving wire rope cost
Ensure the exact length
Advanced technics and efficiency
Good solution to rigging works with limited working space.

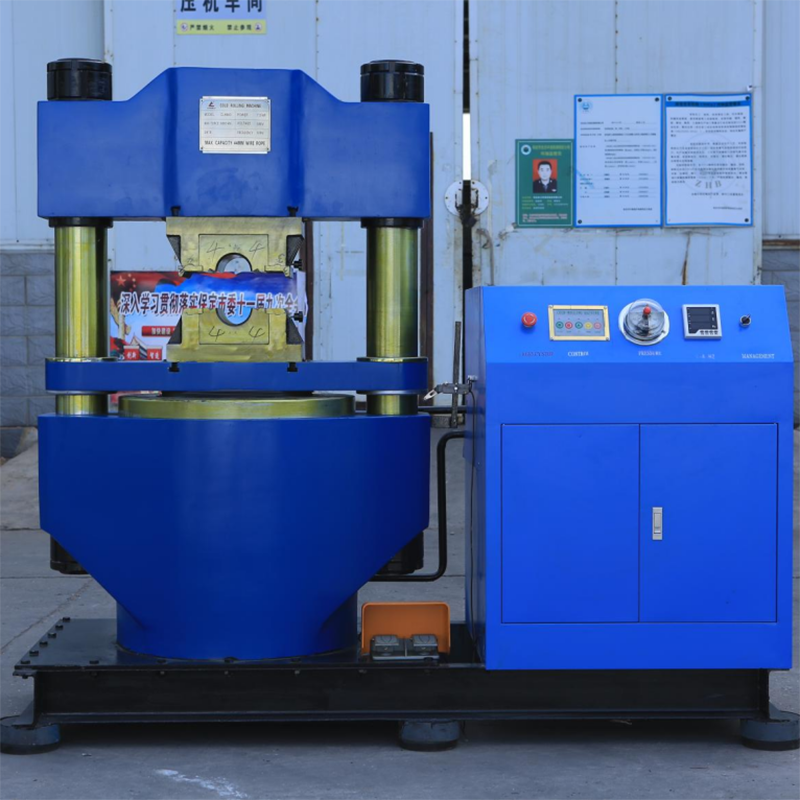

PRESSING MACHINE WORKSHOP
The advantage of pressing machine:
1, The prestress wire rope winding machine is easy to be extended. MKBK pressing machine is cylinder, with two-column or four-column is more stable.
2, More than 32 Mpa is belong to high pressure, MKBK is selected below 30Mpa;

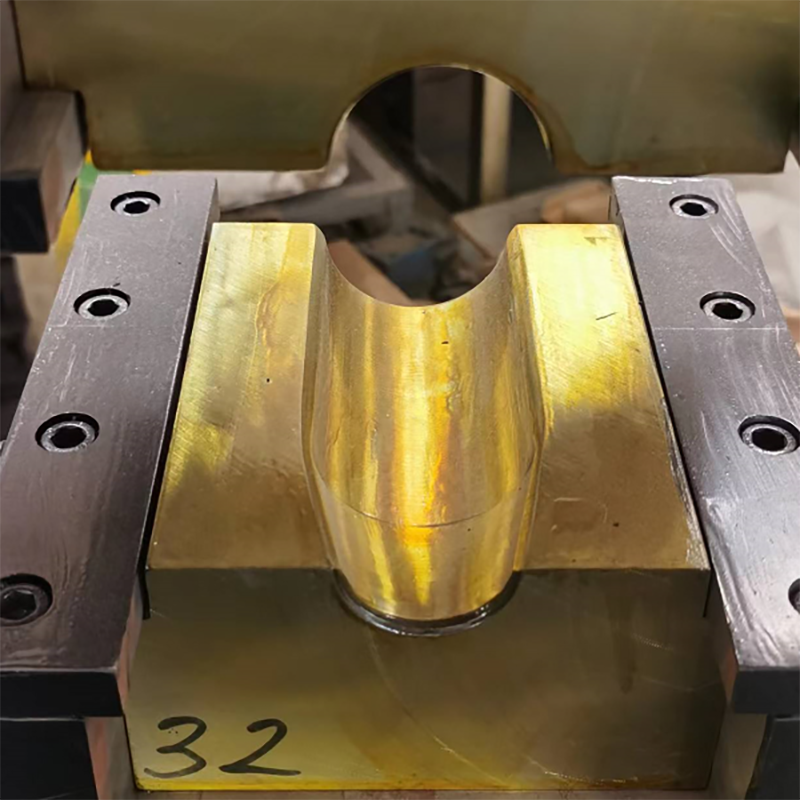

3, the square mold is more stable and not easy to make mold dislocation.
4, the Upper beam, control console, steel body of pressing machine are all made of high-quality alloy steel castings. cylinder wall is very thick, the safety factor up to 8 times.
5, All the parts of machine are special spare parts and we have our own machining work,can make the parts by ourselves.

6, before loading, we will have 48-hour uninterrupted cycle pressure test to ensurethe machine qualified delivery.

CLH600
W902 Type wire rope conical steel ferrules joint 600T accessory(conical)
Steel ferrules type	Dies or steel rope mark	Finished diameter	Pressure	System pressure
	inch	mm	KN	MPa
W902-06	1-4	14.48	205	5
W902-08	5-16	19.05	283
W902-10	3-8		454
W902-11	7-16	25.65	685
W902-13	1-2		810
W902-14	9-16	31.50	1112	8
W902-16	5-8		1390
W902-19	3-4	37.08	1890	13
W902-22	7-8	42.67	2400
W902-26	1	49.02	3100	16
W902-28	1-1/8	54.10	4180	25
W902-32	1-1/4	58.93	4910
W902-35	1-3/8	64.01	5940	29
W902-38	1-1/2	68.83	6890	Multi-times 31
W902-45	1-3/4	78.74
